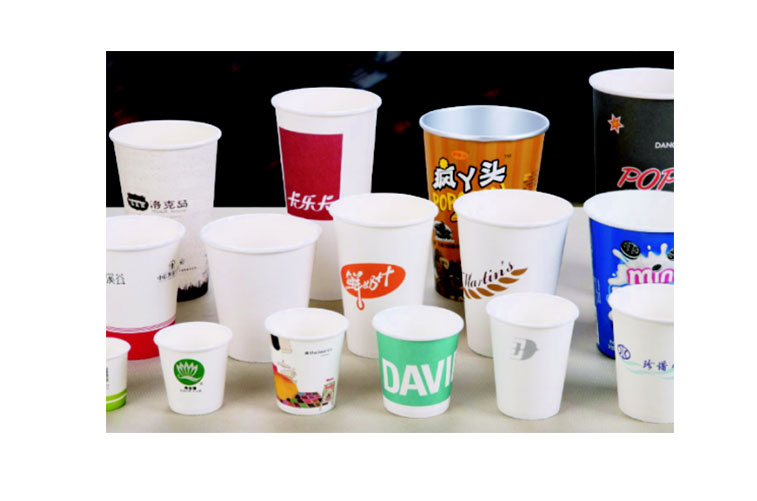

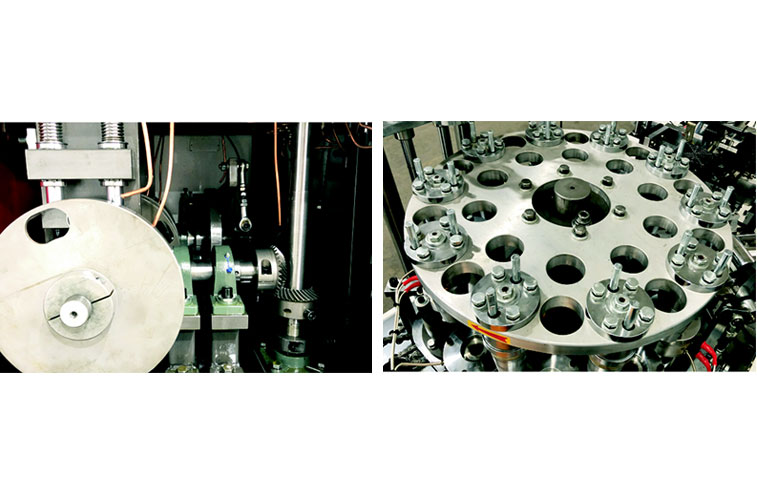

YB-S100全自動高速紙杯成型機,,送紙過程平穩,,到達最大速度130個每分鐘,穩定運行速度100-110個根據紙張材料,。使用旋轉送紙和鉤杯,,采用傳感器監控報警和PLC系統,。具有自動計數收集器??芍谱鲉螌覲E和雙層PE涂成紙,。用于冷飲和熱飲。
型 號 | Model | YB-S100 |
紙杯規格 | Paper cup specifications |
40ml-12 Oz(可根據用戶實際容量大小需求更換各式模具)(Mold exchangeable) |
紙杯材料 | Paper cup Material | 150-350g/m2(單面或雙面涂層紙張)( Single/double PE coated paper) |
生產速度 |
Production speed |
100-110Pcs/m |
電源 | Power supply | 380V 50Hz |
氣源 |
Air Source |
0.6-0.8m3/min |
總功率 |
Total power |
5KW |
機器重量 |
Machine weight | 2000Kg |
外形尺寸 |
Overall dimension(LxWxH) |
2350×1250×1900mm |
